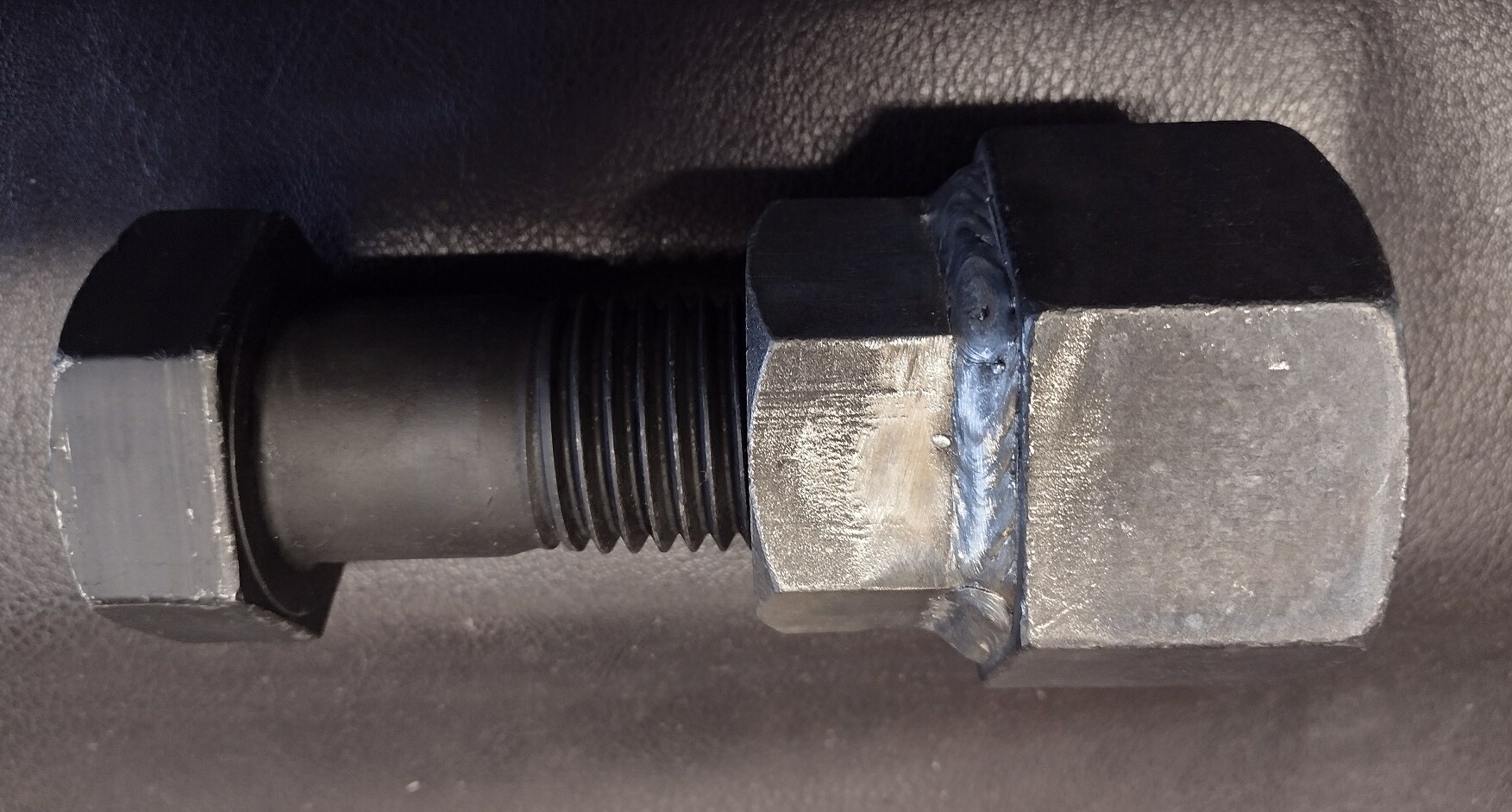

TRIUMPH TR-4 HUB PULLER (uses 1-7/8" x 8 tpi threads on rear HUB)
(should also apply to TR-3)
discovered the design here:
A simple solution for separating axle and hub.
found out more here:
|
Part Number |
Qty
|
Price Each (2022)
|
|
Grade 2H steel nut, 1-7/8" x 8 tpi, McMaster-Carr
# 90521A037
|
1
|
$14.24
|
|
Grade 5 steel bolt, 1-1/2" x 6 tpi, 5" long
McMaster-Carr # 91283A452
|
1
|
$17.12
|
|
Grade 8 steel nut, 1-1/2" x 6 tpi, McMaster-Carr
# 90499A041
|
1
|
$7.41
|
|
Multipurpose 110 copper bar 1/4" x 1-1/2"
x 6" McMaster-Carr # 8964K851
|
1
|
$20.30
|
 |
another more versatile approach:
